Fin Aligment Tools and Template


LenForsyth
(@lenforsyth)
Member Admin Club Member
Joined: 10 months ago
Posts: 62
Topic starter

Creating a fin alignment guide for a 3 or 4-fin model or high-powered rocket is crucial in ensuring the stability and accuracy of your rocket's flight.

Here's a basic guide to help you make an alignment tool for your rocket fins:

Materials Needed:

  • Stiff cardboard or foam board
  • Ruler or measuring tape
  • Protractor (for angle measurements)
  • Pencil or marker
  • Scissors or a hobby knife
  • A long, straight edge or metal ruler

Steps for a 3-Fin Model:

  1. Create the Base Circle:

    • Measure the diameter of your rocket body tube.
    • Draw a circle on the cardboard or foam board that matches this diameter. This will serve as the base of your guide.
  2. Mark the Fin Positions:

    • Using the protractor, divide the circle into three equal sections (120 degrees apart). These marks indicate where each fin will be positioned.
  3. Cut Fin Slots:

    • From the edge of the circle, cut straight lines towards the centre, stopping at the circle's circumference. These slots should be wide enough to accommodate the thickness of your fins.
  4. Extend the Guide:

    • For better alignment, extend lines from each slot outward on the cardboard. This helps in aligning fins that are longer than the radius of your base circle.

Steps for a 4-Fin Model:

  1. Create the Base Circle:

    • As with the 3-fin model, start by drawing a circle that matches the diameter of your rocket's body tube.
  2. Mark the Fin Positions:

    • Divide the circle into four equal sections (90 degrees apart) using the protractor for precise measurements.
  3. Cut Fin Slots:

    • Cut straight lines from the circle's edge towards the centre, stopping at the circle's circumference to create slots for the fins.
  4. Extend the Guide:

    • Extend lines from each slot outward to assist in the alignment of longer fins.

Using the Fin Alignment Guide:

  • Slide the guide over the body tube of your rocket.
  • Insert the fins into their respective slots. The slots will hold the fins in place, ensuring they are evenly spaced and properly aligned.
  • Use the straight edge to check that the fins are perfectly vertical along the length of the body tube. Adjust as necessary before the adhesive sets.

Tips:

  • For high-powered rockets, consider making the alignment guide out of more durable materials like thin plywood or plastic sheets.
  • You can also buy commercial fin alignment guides made of metal or plastic, designed for standard tube sizes, offering a more durable and reusable solution.
  • Always double-check measurements and alignments before gluing the fins to ensure the best flight stability.

Creating your own fin alignment guide is a cost-effective way to improve the accuracy and reliability of your rocket builds. You can ensure your high-powered rocket flies straight and true with careful construction and use.

TEMPLATE

CLICK HERE to Download the Fin Alignment Guide

(A PDF file will open in  a new tab that you can print or save.)

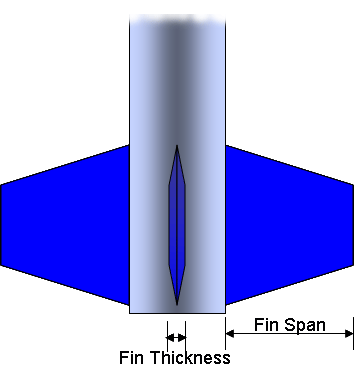

You may also find this tool of value. The Fin Guide Tool creates a template for positioning fins around a body tube. The template can be printed actual size. You can print the guide on heavy paper (or glue the printout to a sheet of foamboard) and cut out the hole for the body tube and the slits for the fins. This allows the guide to be used as a jig for holding fins in place until the glue dries.

The Fin Guide Tool from PayloadBay.com
